太阳能连接软管

发布:欧米茄不锈钢软管 | 发布时间:2018-1-27 10:11:04

太阳能连接软管
   Solar Connection Hoses


太阳能连接软管对于太阳能电池板的安装,是一个先进的解决方法,它被用于太阳能装置上输送热水。

Solar Connection Hoses are a modern solution for solar panel installations designed to get hot water using solar energy.

为了在太阳能连接软管安装过程中,减少软管长度测量的麻烦,我司可根据客户需求生产每卷10到50米的单管绝缘或双管穿线绝缘的太阳能软管。

In order to reduce difficulties of determining needed hose lenghts and using beforehand manufactured hoses during installations,  Solar System  produced either single or double insulated according to customer demands and shipped in coils of 10 to 50 meters.

太阳能连接软管可以简便地从温度传感器连接到控制器,他除了软管和绝缘层外,还附加了一个电缆。

Also to ease making the connection from collector temperature sensor to control unit, a double-tipped silicon cable is attached besides the hose and insulation.

特别在外部环境中,太阳能连接软管的绝缘层可有效地降低水循环时的能量和热量的损失。

Especially in external environments, preferring hoses with insulating prevents energy and heat losses which are exteremely important for the whole system.



  太阳能系统软管的尺寸和操作条件
  Dimensions and Operating Conditions of Solar System Hoses




  太阳能软管的类型
  Types of Solar System Hoses with Insulation

                                                                                                                              没有编织层的单管的太阳能软管
                                                                                                                1 in 1 Single Insulated Hoses without Braiding

                                                                                                                              没有编织层的双管的太阳能软管
                                                                                                                2 in 1 Double Insulated Hoses without Braiding

                                                                                                                              有编织层的双管的太阳能软管
                                                                                                                2 in 1 Double Insulated Hoses with Braiding



  太阳能软管的连接方式
  Quick Connection Tecniques for Solar System Hoses


它在太阳能软管的简易安装和快速连接上起了非常大的作用。

It is quite important to use an easy and quick connection tecnique for hose installations in solar energy systems.

这种接头降低了工艺成本,节约了加工成本,使产品具有价格优势。

This provides cost savings by reducing workmanship costs besides providing products at a good cost.

我们生产的软管和接头很方便安装,对于任何没有操作经验的人来说都能很简单地操作。

Because no handiness is required for mounting hoses and connection parts we produce, it is quite easy for anyone without experience.

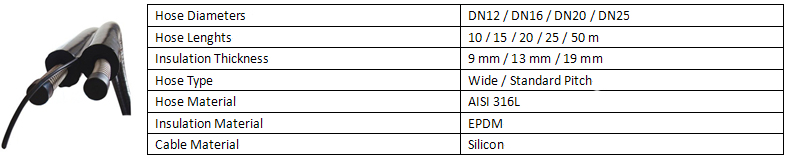

  材料规格
  Material Specifications

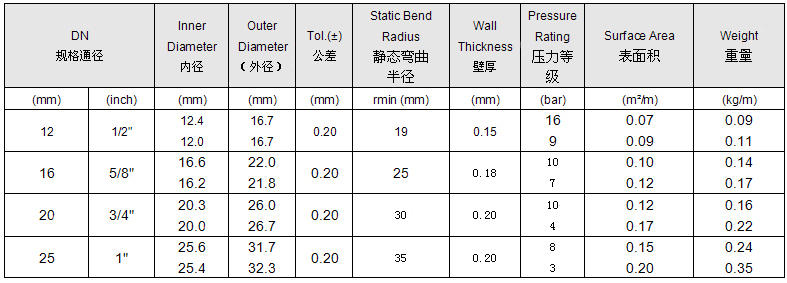

  尺寸和操作条件
  Dimensions and Operating Conditions
