铁氟龙软管
发布:欧米茄不锈钢软管 | 发布时间:2020-3-10 21:22:51
产品描述
产品型号
技术参数
Summarize 概述
Teflon hose is made of PTFE(Teflon) and woven with one or more layers of stainless steel woven mesh. It has the functions of high pressure resistance, corrosion resistance, aging resistance, wear resistance, high lubrication, etc. It can still
maintain its high strength after long-term use at 200 ~ 240℃ in high temperature environment, with the highest temperature resistance (260℃) and low temperature resistance at-96℃.
Negative pressure resistant Teflon bellows developed by OBB® has been widely used in vacuum field.

铁氟龙软管采用PTFE(Teflon)材质,外编织一层或多层的不锈钢编织网,具有耐高压、耐腐蚀、耐老化、耐磨、高润滑等功能,在高温环境下长期使用温度200~240°仍能保持其高强度,耐高(260℃)、耐低温在-96°度时仍柔软。OBB®开发的耐负压铁氟龙波纹管已推广用于真空领域。
Spiral PTFE hoses 铁氟龙软管(内管螺旋柔式软型)

PTEE Teflon hose covered with stainless steel wire braid.
Temperature: -96℃~+260℃
Application range 应用范围
Used to transport compressed air, natural gas, steam, fuel, petroleum, chemical industry, food and pharmaceutical products. Especially suitable for steam pipes of injection molding machines, heat-conducting oil devices,  automobiles, food and pharmaceutical industries, and the transportation of solvents, pigments and paints. It can also be used in hydraulic system of marine equipment. Not suitable for melting alkali metal and high temperature halogen products.
用于输送压缩空气,天然气,蒸汽,燃料,石油,化工,食品和医药产品。特别适合用于注塑机的蒸汽管道,导热油装置,汽车,食品和制药行业,溶剂,颜料和油漆的输送。也可用于海洋装备上的液压路系统。不适合熔融碱金属和高温卤素产品。

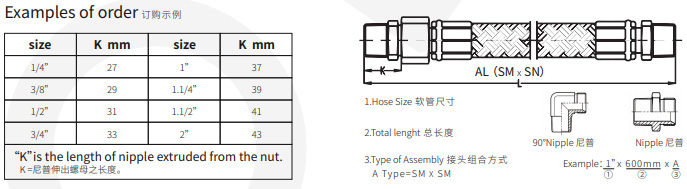

The length of flexible hose shall be calculated by the length that includes the nipple
软管长度之计算皆以含尼普之长算度为计算标准
Please tell us the size, length, service pressure and joint type when ordering
订购时请示知尺寸,长度,使用压力及接头型式
This list is only a brief introduction. Hoses and joints of various sizes can be supplied as required
本单仅做简单介绍,各种尺寸的软管及接头型式可依要求供应
