Composite hoses 复合软管
Summarize 概述
Composite hoses are more resistant to aging than rubber hoses and softer than stainless steel hoses. The main types are: anti-static, wear-resistant, high temperature resistant, light oil type and heavy oil type. OBB® adopts international standards and customizes various types of composite hoses according to customer requirements.
复合软管具有比橡胶软管轻、耐老化，比不锈钢软管柔软的特点。主要类型有：防静电，耐磨，耐高温，轻油型与重油型。
OBB®采用国际标准，按客户要求定制各种连接形式的复合软管。
Product features 产品特点
1. The composite hose has the characteristics of light weight, good sealing performance, tensile strength and aging resistance；
2: Has good pressure resistance: pressure can reach 4.0MPa, negative pressure can reach 0.1MPa；
3. The maximum operating temperature can reach 180℃ (only for steam sweeping)；
4. It has good corrosion resistance to chemical products containing aromatic hydrocarbons and acid-base liquid media；
5. The composite hose is made of good flame retardant materials, with flame retardant and antistatic properties；
6. The radius of the bending rate of the composite hose can not be folded, the inner wall is detached, blocked and the pipe body is fractured at a small bending position.
1、复合软管具有重量轻、密封性能好，抗拉强、耐老化等特点；
2:具有良好的耐压性能：压力可达4.0MPa，负压可达-0.1MPa；
3、使用温度可达180℃(仅限于蒸汽扫线)；
4、对含芳香烃的化学制品及酸碱类液体介质，都具有良好的耐腐蚀性能；
5、复合软管采用良好的阻燃材料制造，具有阻燃抗静电性能；
6、复合软管能在很小弯曲半径部位不会发生折叠、内壁脱落、堵塞和管体折裂现象。

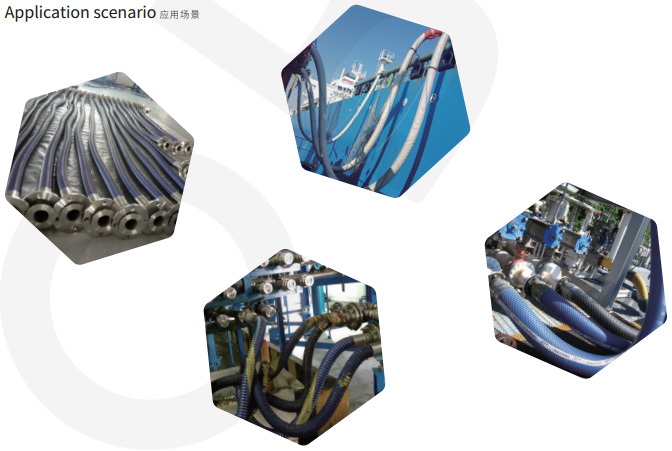

Application range 应用范围
OBB® composite hoses are anti-static and have a conductivity of less than 10Ω. Can drain aromatic hydrocarbons, including diesel, gasoline, lubricating oil, various fuels and other oil products; commonly used in various factories and
tank trucks. It is widely used in chemical liquid transportation, fast loading and oil transportation, loading and unloading of oil on ships at docks, and liquid loading and unloading of tank trucks.
OBB® 复合软管可防静电，导电值低于10Ω。可排吸芳香烃含量的碳氢化合物，包括柴油，汽油，润滑油，各种燃油等油类产品；常用于各类工厂及装卸罐车上。广泛用于化工液体输送，快装输油，码头船舶装卸油，槽罐车液体装卸等。
