消防洒水软管

发布:欧米茄不锈钢软管 | 发布时间:2017-11-7 10:10:38


消防水喷淋管道连接软管
Omega Fire Sprinkler Connection Hoses

Omega喷淋软管和连接适配器可被安全地用于灭火系统,由于其结构未受着地震运动和编织管的耐热和压力,最重要的是不依赖于安装线设计。该产品具有防火、防渗漏、防微尘的三重保护,可应用于几乎所有的天花板系统。 有使用Omega花洒软管和连接适配器安装自动喷水灭火系统的许多优点。全不锈钢结构,粉尘与污染物,100%防腐蚀,保证紧急情况下能喷出水来;良好的可挠性,可有效降低因传统硬管配置误差所产生的应力,进而降低龟裂的情形发生;安装简单,保守讲其装配速度是传统硬管的20倍!施工方便、省时、省成本、取代传统施工繁复丈量尺寸、切管、车牙接管、锁紧等程式,有效减少人工成本。若重新装配或设计变更时,能够方便且快速的位移; 软管的出水喷淋侧可在垂直轴调整, 喷头和孔罩的高度可以相对于天花板进行调整。非常方便轻松地安装设备到天花板与它的连接适配器。对地震运动更安全自动喷水灭火系统和可调节的最小工艺时间,Omega消防喷淋软管产品用于液压设计的湿法或干法管洒水连接使用,并直接连接到消防喷头。
Omega sprinkler hose and connection adapter can be safely used in fire extinguishing systems, because of its structure is not being affected by the heat and pressure of seismic movement and braided tube, the most important thing is not dependent on the mounting line design. There use Omega shower hose and connection adapter installation of automatic sprinkler system many advantages. Sprinkler hose side can adjust the height of the vertical axis, the nozzle and the escutcheon can be adjusted relative to the ceiling. Very convenient and easy to install equipment to the ceiling with its connection adapter. Seismic motion safer sprinkler system and an adjustable minimum process time, Omega fire sprinkler hose products for the hydraulic design of wet or dry pipe sprinkler connection, and a direct connection to fire sprinklers.

Omega生产的自动喷水灭火系统使用的软管正在取得相关安全认证,每一件产品均按相关的标准生产。它表明测试,如压力,温度,fatigued,需要提供楼宇消防安全振动被批准组织实施,产品具有声明的技术规范和检查是定期进行检查,根据经批准的规范是否生产。安装洒水系统,当ATH花洒软管和Connection适配器的设计是为了解决可能出现的问题经验丰富。 他们提供包括螺栓,使最简单,最快速的安装下述吊顶系统。ATH灵活的花洒软管连接降低退化所造成的地震运动的可能性。这是很重要的安全系统能够工作无问题。
Omega production hose sprinkler system is being used to obtain the relevant safety certification, each product according to the relevant standards. It showed tests, such as pressure, temperature, fatique, the need to provide building fire safety organization and implementation of vibration is approved, the product has a statement of the technical specifications and inspections are regularly inspected, whether produced in accordance with the approved specifications. Installation of sprinkler systems, when Omega shower hose and Connecton adapter is designed to solve problems that may arise experience. They offer include bolts, so the easiest, fastest installation below ceiling system. Omega flexible shower hose connections reduce the possibility of degradation caused by seismic movement. This is a very important safety system can work without problems.

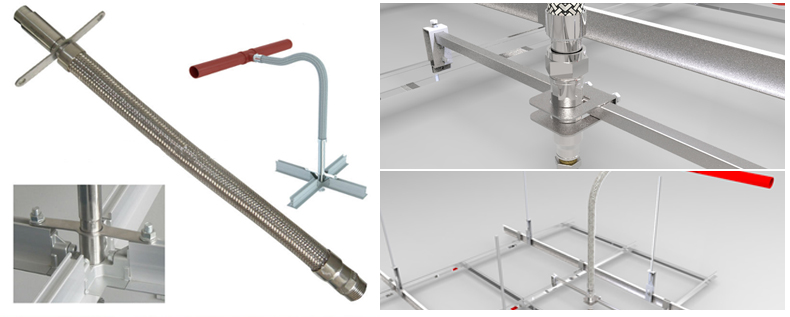

编织不锈钢灵活洒水喷头软管和配件
Braided Stainless Steel Flexible Sprinkler Hoses with Fittings

型号/Model Name:: OH-25F
产品说明/Description: DN 25 Braided
应用领域/Application: 无尘室Clean Room
工作压力/Working Pressure: 200 psi (1380 kPa)
长度/Length: 700mm, 1000mm, 1200mm, 1500mm, 1800mm
最小弯曲半径/Minimum Bending Radius:175mm (7 in.)
减速机尺寸Sprinkler Reducer Size: 1/2” NPT/BSPT/RP
尼普尺寸Nipple Size: 1” NPT/BSPT
管体材质Hose Material: SUS304
Can be used with most common ceiling grids used in clean room application on the market.

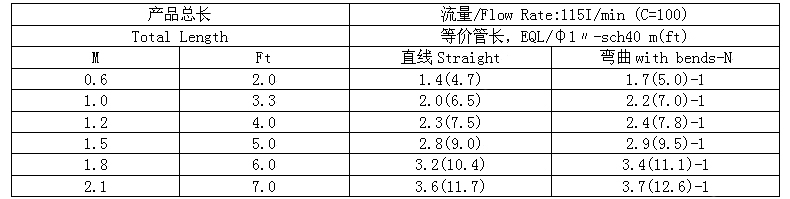

编织不锈钢灵活洒水喷头软管的尺寸

备注NOTE:N:90度弯曲数NO.of 900 bend
产品特性说明/Features of the Sprinkler Hose
1.耐压性能Pressure capabilities:
额定压力Rated working pressure:12.3kg/cm2,175psi
耐压压力Hydrostatic pressure:49.3kg/cm2,700psi
爆破压力Burst pressure:98.5kg/cm2,1400psi
2.品质安全性能Quality&Security of products
a.单件式管体与不锈钢结构设计,100%工本测压,现场无涂装或封胶需求。
One piece style and stainless steel structure.100%leakage test in the shop.Require no painting or epoxy coating.
b.良好可挠性与活动固定翅,有效降低因地震或结构位移所造成之骨架变形或管线龟裂。
Good flexibility and floating fixing plate structure reduce the risks of ceiling deformations and pipe cracks caused by the earthquake or the           structural offset effectively.
3.施工安全性能Installation with security

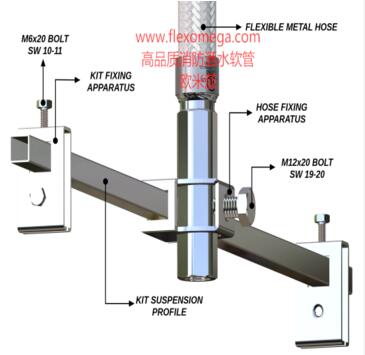

a.螺丝件固定,结构简单,施工安全性高。
Construction with screws.Provide builders with security.
b.安装或维修保养期间,不仅可保持工作区洁净,更不需停工或者停机,有效加速无法室之运作。
Keep the factory or working site clean during installation.Require no dpwntime for routine inspection and replacement.Accelerate the clean           room rumming effectively.
