水、油液压软管
发布:欧米茄不锈钢软管 | 发布时间:2018-1-27 10:12:46
产品描述

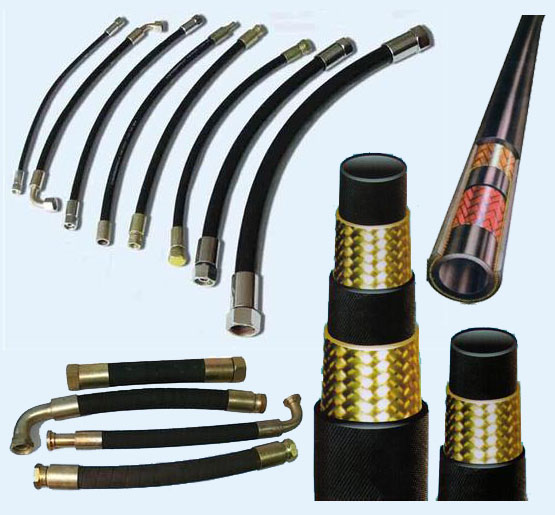

油液压软管(常用规格)

一層鋼絲液壓管 1Wb Hydraulic Hose
兩層鋼絲液壓管 2Wb Hydraulic Hose

二、水用軟管(低壓水、油、氣)

Fluid 流量 Working Pressure 工作压力 Temperature
使用温度
Size 尺寸
Oil,Water,Air 油,水,气 WH 15kg/cm2
WHS 40kg/cm2
-30℃~+150℃ 1/4″~2″


Size K mm Size K mm
1/4″ 27 1″ 37
3/8″ 29 1.1/4″ 39
1/2″ 31 1.1/2″ 41
3/4″ 33 2″ 43
K = 尼普伸出螺母之長度
K is the length of nipple extruded from the nut.

1、軟管尺寸 Hose Size
2、總長度 Total Length
3、接頭組合方式 Type of Assembly
① 軟管長度之計算皆以含尼普之長度為計算標準
The length of flexible hose shall be calculated by the length that includes the nipple.
② 訂購時請示知尺寸,長度,使用壓力及接頭形式
Upon placing the order,please indicate the size,length,pressure to be used together with the coupling type.
③ 本頁面僅做簡單介紹,各種尺寸的軟管及接頭形式,可依要求供應
This sheet only provides the overall introduction.Various sizes of hose and couplers are available upon requirement.

A Type = SMxSN
