空调抗震管
发布：欧米茄不锈钢软管 | 发布时间：2020-4-1 15:32:23

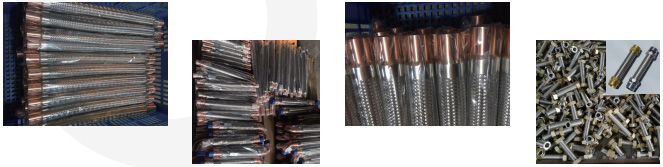

Anti-seismic pipe of air conditioner 空调抗震管
Summarize 概述
The shock absorber tube designed by OBB® is mainly used in cooling systems in refrigeration industry, such as air conditioning units, refrigeration devices, heat pumps, etc. It can prevent vibration transmission and has sound
insulation function, can be compatible with conventional refrigerants, and can resist frost.
OBB®设计的避震管在制冷行业主要应用于冷却系统，比如空调机组，制冷装置，热泵等，可以阻止震动的传递以及具有隔音作用，可以兼容常规的制冷剂，可耐霜冻。
Parameter 参数
Nominal pressure 公称压力：30 bar （3.0 MPA）
Operating temperature range 使用温度范围：-70℃~200℃
Material 材质：SS304/316/Cu（copper pipes at both ends have straight pipes, with flared and necked ends, and looper nuts at the tapered ends 两端紫铜管有直管，端部扩口和缩口，端部锥面带活套螺母）
Installation method 安装方法
Welding, flange connection, screw sealing connection. When installing the hose, it is necessary to consider the installation direction, because the shock absorber hose can only absorb the displacement movement in the correct angle direction with the axial direction. After installation, the shock absorber pipe shall not be stressed, and shall be installed in alignment (no offset at both ends), and shall not be stretched or bent by external force. The fixed end of the installation must be directly connected to the back of the shock absorber hose. When running continuously, the maximum amplitude is 1 mm, which can reach 5 mm when starting or stopping; If there is extra vibration in the axial direction of the hose, two shock absorbers should be installed at a right angle of 90 degrees.
焊接、法兰连接、螺纹密封连接。当安装软管的时候，需要考虑安装方向，因为避震软管只能吸收与轴向成正确角度方向上的位移运动。避震管安装以后不能受应力，需对齐安装（两端无偏移量），并且不能受外力而拉伸或者弯曲。安装的固定端必须直接连接在避震软管的后面。在连续运行的时候，振幅是±1mm，当启动或者停止时，可以到±5mm；如果在软管轴向方向有额外的震动，那么应该安装2个避震管，成90度直角。
