消防洒水软管
发布:欧米茄不锈钢软管 | 发布时间:2020-4-1 16:10:02
产品描述
产品型号
技术参数

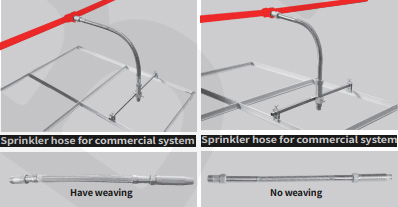

Fire Sprinkler Hoses 消防洒水软管
Summarize 概述

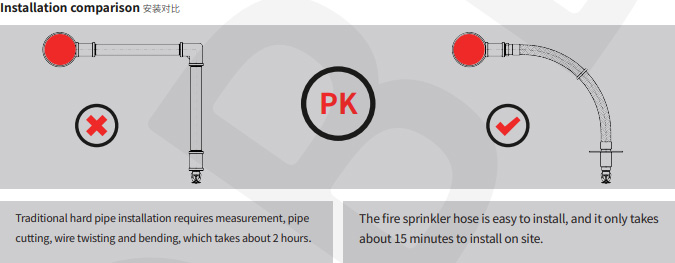

The OBB® fire sprinkler hose designed and manufactured by Omega hose has strong anti-twisting ability. The simple and quick-mounting bracket unique to OBB® can be quickly installed between the main
pipeline and the spray head with hose, which is more than 10 times more efficient than the traditional threaded hard pipe, and can save more than 10 times the manual installation cost.
由欧米茄软管设计与制造的OBB®消防洒水软管,具有很强的抗扭曲能力,OBB®特有的简易快装式支架,能在主管道至喷淋头之间用软管进行快速安装,比传统的螺纹硬管提高效率,可节约人工安装成本。

  • Advantage 优势
    OBB® fire sprinkler hose has the leading performance in the industry. It is manufactured according to the specifications approved by international FM and domestic CCC. Its reliability is unmatched, and its service life can
    reach more than 70 years. Corrugated flexible pipe and woven net have been treated by solution. It has high pressure resistance and good flexibility, integrated structure, factory pressure measurement,
    zero leakage on site and universal installation fastener design. It is suitable for various installation occasions.
    OBB®消防洒水软管具采用国内CCC认可的规范生产制造,可靠性无可匹敌,使用寿命可达70年以上,波纹挠性管与编织网经过固溶处理,拥有高耐压性与良好的可挠度,一体式结构,全工厂测压,现场零泄漏,通用性安装扣件设计,适用于各式安装场合。
  • Technical Specifications 技术参数
    Maximum working pressure: 232psi/1600KPa
    Connection: through 1 inch/25mm
    NPT/BSPT externally threaded pipe is connected to
    branch pipe (inlet)
    Pass 1/2 inch/15mm
    The maximum allowable bending number of each
    flexible hose is ≥50000

  • 工作压力:175psi/1206kPa
    连接:通过1英寸/25毫米
    NPT/BSPT外螺纹管连接至支线管(进口)
    通过1/2英寸/15毫米
    NPT/BSPT内螺纹管连接至喷淋头(出口)
    每一挠性软管允许的弯曲数 ≥50000(次)
  • Material Specification 材料规格
    Reducer and nipple: Type 304 stainless steel/galvanized carbon steel
    Corrugated flexible hose: 304 stainless steel
    Braided and ring: type 304 stainless steel
    Fixed wing: galvanized carbon steel
    异径管和短节:304型不锈钢/镀锌碳钢
    波纹挠性软管:304型不锈钢
    编织和环:304型不锈钢
    固定翅:镀锌碳钢
  • 江苏欧米茄软管有限公司
    地址:中国江苏靖江市靖城镇越江村管理区
    电话:0523-84659900
    传真:0523-84659890
    手机:17768611369
    网址:http://www.nl-hose.com
    欧米茄资质
    通过消防产品FM认证
    通过中国强制性产品认证3C认证
    通过中国国家计量认证MA认证
    FM认证 3C认证 MA认证
