防爆挠性管​
发布:欧米茄不锈钢软管 | 发布时间:2020-4-1 15:14:07
产品描述
产品型号
技术参数
Explosion-proof flexible tube 防爆挠性管
Summarize 概述
The explosion-proof flexible pipe produced by OBB® has passed MA explosion-proof certification. With our unique technology, the bellows and joint are connected by mechanical combination structure instead of lead (Pb) welding method, so this new product is environmentally friendly. Explosion-proof flexible pipe is used for connection of incoming and outgoing lines of explosion-proof electrical equipment or places where bending of steel pipe wiring is difficult.
OBB®生产的防爆挠性管通过MA防爆合格认可,用我们独特的技术,使波纹管和接头之间机械组合结构连接,而不是采用铅(Pb)焊接方法, 因此该新产品是环保的。防爆挠性管作为防爆电器设备的进出线连接或钢管布线弯曲难度较大的场所连接之用。

Product features 产品特点

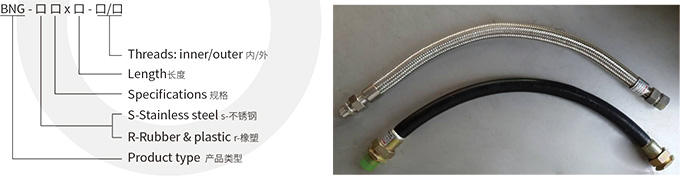

This product is divided into two types: stainless steel and rubber-plastic 本产品分不锈钢与橡塑两种类型:
stainless steel consists of internal and external threaded joints, stainless steel corrugated pipe wrapped with stainless steel net pipe, etc. Stainless steel has the advantages of oil resistance, corrosion resistance, wear resistance, aging resistance, waterproof, flame retardant, good flexibility and long service life.
不锈钢由内外螺纹接头、不锈钢波纹管外包不锈钢网管等组成,不锈钢具有耐油、耐腐蚀、耐磨、耐老化、防水、阻燃、挠性好、使用寿命长等优点。
Rubber-plastic is composed of internal and external threaded joints made of high-quality carbon steel, metal hoses wrapped with PVC rubber-plastic pipes, etc. Rubber-plastic has the advantages of non-toxicity, tasteless, oil resistance, acid resistance, corrosion resistance, wear resistance, aging resistance, waterproof, flame retardant, good flexibility and low cost.
橡塑的是由优质碳钢制成的内外螺纹接头、金属软管外包PVC橡塑管等组成,橡塑的具有无毒、无味、耐油、耐酸、耐腐蚀、耐磨、耐老化、防水、阻燃、挠性好、成本低等优点。



  • Scope of application 适用范围
    1.Hazardous:zone1&2;
    2.Explosive gas atmosphere:class IIA、IIB、IIC;
    3.Hazardous:zone 20、21 and 22;
    4.Flammable dust atmosphere;
    5.Indoor or outdoor(IP65);
    6.widely using in the fields of oil,chemical
    industry,spaceflight,war industry and so on.


    1.1区、2区危险场所;
    2.IIA、IIB、IIC类爆炸性气体环境;
    3.20区、21区、22区危险场所;
    4.可燃性粉尘环境;
    5.户内、户外(IP65);
    6.应用于石油、化工、航天、军工等场所。
